Newmar RV Driver Side 17.5" Chrome Mirror Head Assembly with 12" Arm 130767B
Newmar RV Driver Side 17.5" Chrome Mirror Head Assembly with 12" Arm 130767B
SKU: 08575769
Typically Ships in 5-7 Days.
In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.
Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.
Couldn't load pickup availability
Product Description
Product Description
Newmar RV Ramco chrome mirror head assembly, for driver (LH) side of coach. This is Newmar part number 130767B, Ramco part number NEWMA7001 / 306-CRM-1752-A3CCHRT-855B.
Pairs with RH side assembly # NEWMA7002 / 306-CRM-1752-A13-CCHRT-855: Newmar RV Passenger Side 17.5" Chrome Mirror Head Assembly with 22" Arm 130767D

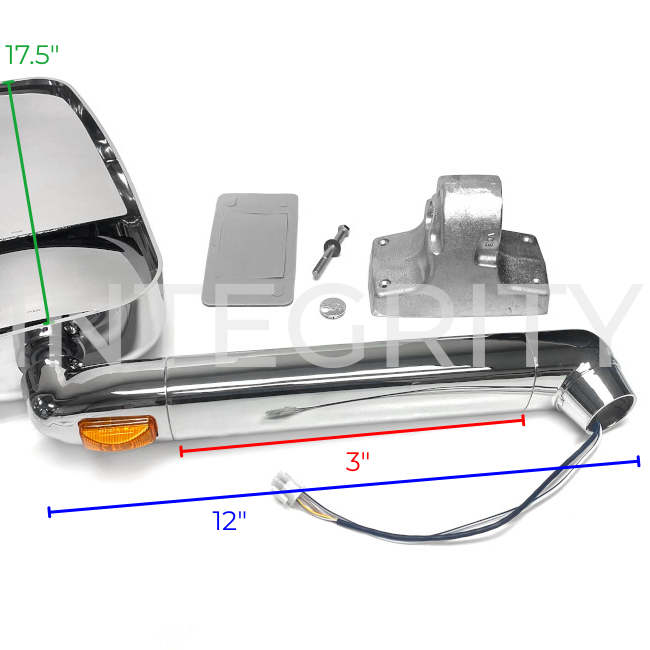

**Please note that the driver side arm is 10" shorter than the passenger side arm.**
Ships in a 22.75" x 5.75" x 31.5" box, weighing 20 lbs.
---

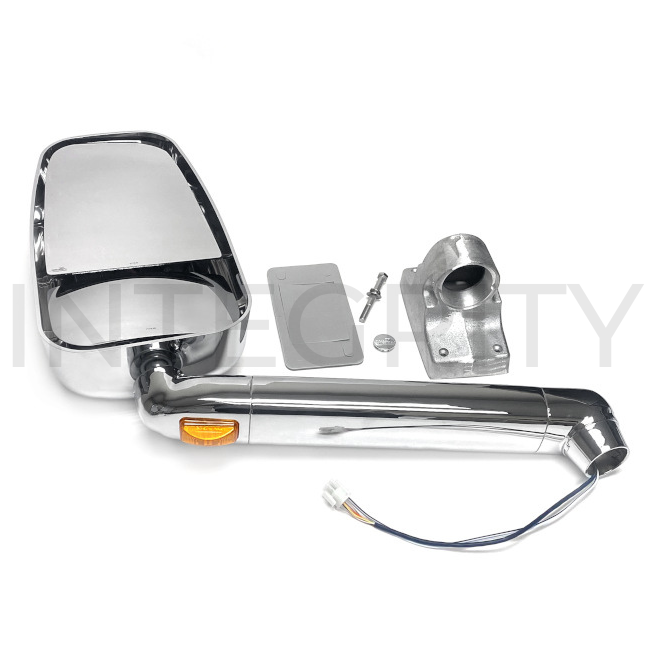

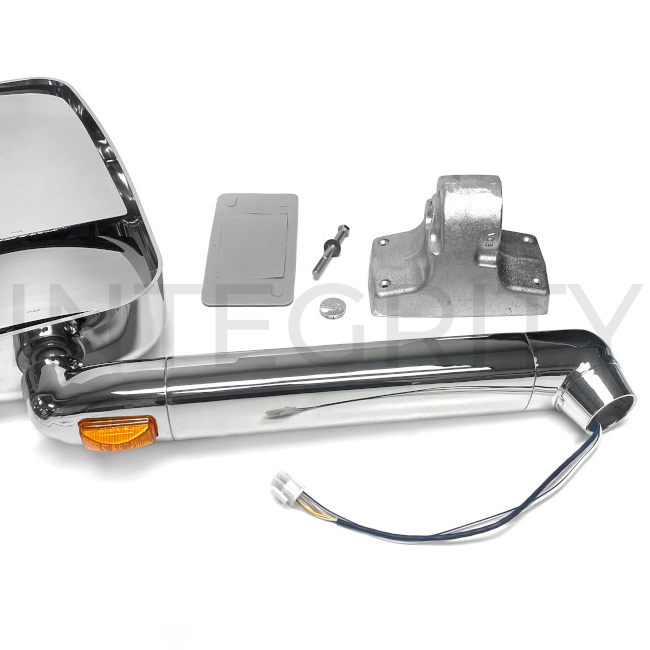

Assembly contains the following parts:
| Quantity | Description |

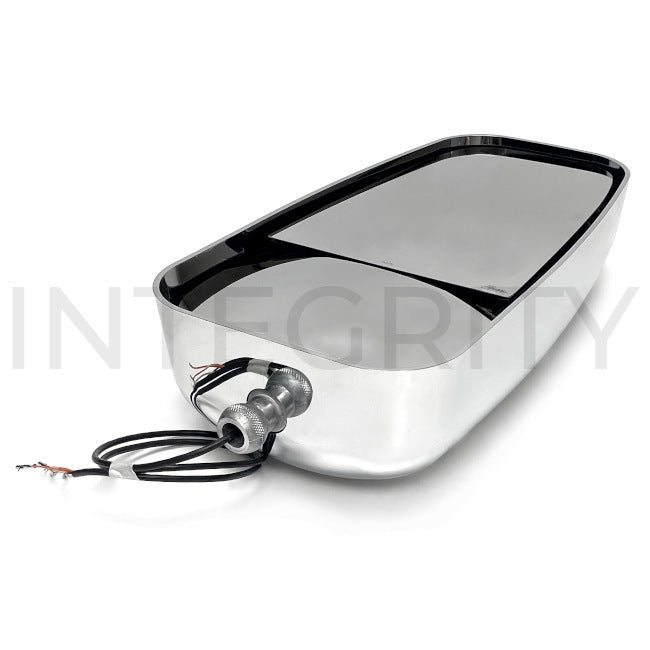

| QTY 1 | 750 series 17.5" chrome mirror head (which contains the GLS171 and GLS170 mirrors). |
| QTY 1 | 12" arm with an amber light attached. |
| QTY 1 | Base mounting piece to connect the arm to the coach (raw mount, no shroud / bezel included). |
| QTY 1 | Foam gasket. |
| QTY 1 | Hardware pieces (see photo for reference). |
**Please make sure the mirror head and arm measurements are correct before purchasing. Contact us if you would like us to confirm compatibility with your coach.**
