Newmar RV HWH R34692 Hydraulic Spring Kit 12" Coil Length 08329

$49.99

SKU: 08479658 Newmar

13 in Stock, Ready to Ship.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

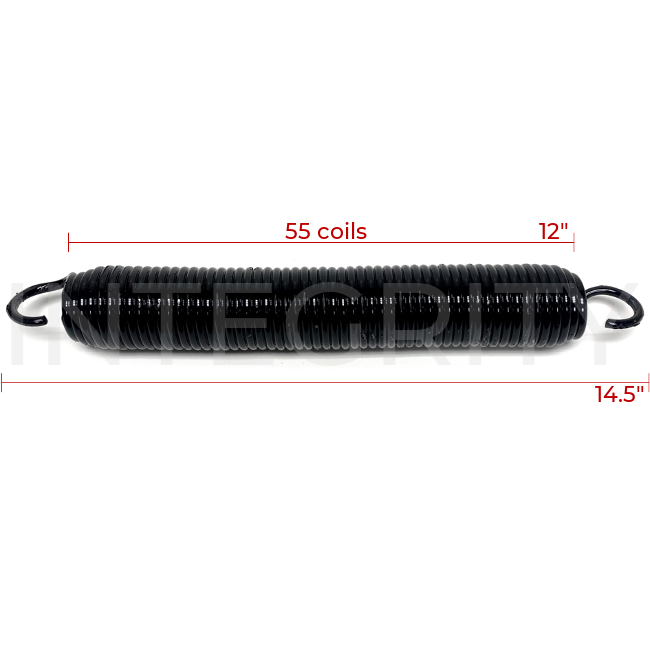

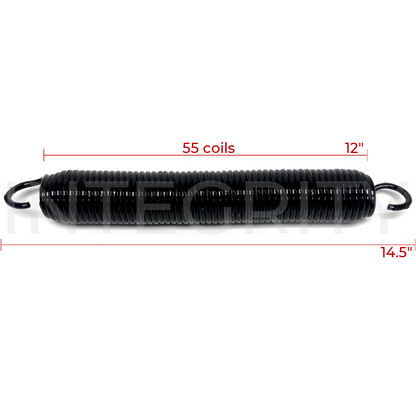

RV motorhome HWH spring kit for hydraulic jack. Current HWH number is R34692 (replaces old part number R91642). This spring has 55 coils. Springs measure 14.5 inches from end of hook to end of hook; 2 inches diameter; the coil itself measures 12 inches.



The easiest and most reliable way to determine which spring kit you need is to find the AP part number on the tag of the jack cylinder. That AP number will cross to the exact spring kit number. This HWH spring kit was/is used in the following assemblies:

HWH Hydraulic Jack Cylinder Assemblies Using Newmar Part Number 08329

AP0040, AP0060, AP0453, AP0582, AP0583, AP1122, AP1297, AP1497, AP2051 , AP7772 , AP8491, AP8526 , AP9517, AP9522, AP9552, AP10700, AP11298, AP11326, AP11369, AP11375, AP11804, AP13500 , AP16997, AP16998, AP18309, AP18310 , AP19357 , AP19670, AP19895 , AP20314 , AP20317 , AP22337 , AP23471, AP24871 , AP28818, AP29042, AP29046, AP29246, AP29373, AP29405, AP29406, AP29420 , AP29903, AP29904, AP29964, AP29965, AP29980 , AP30719, AP30720, AP33344, AP33345, AP38241, AP38242, AP40305, AP40411, AP40412, AP40413, AP40414, AP40520, AP41151, AP41152, AP41170, AP41172, AP41228, AP41585, AP41586, AP41587, AP41588, AP41859, AP42396, AP42535, AP43106, AP43439, AP44021, AP44186, AP44187, AP44188, AP44649, AP44795, AP44796, AP45577, AP45650, AP46748, AP46995, AP46996, AP49471, AP49515, AP50457, AP50783



RAP9552
