Newmar RV HWH R3847 Hydraulic Spring Kit 11.125" Coil Length 04146

Newmar RV HWH R3847 Hydraulic Spring Kit 11.125" Coil Length 04146

SKU:0​8​4​2​0​4​5​0​​

Sale Sold out
Regular price $54.21 USD

9 in Stock, Ready to Ship.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

Product Description

+

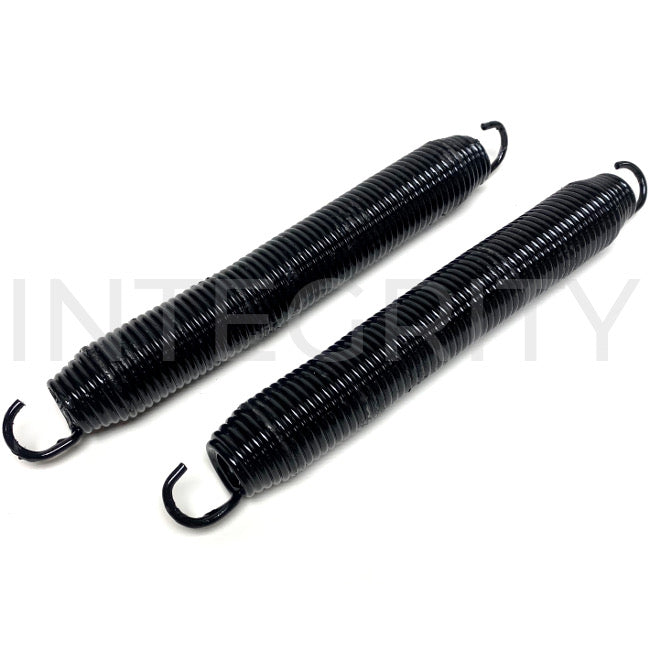

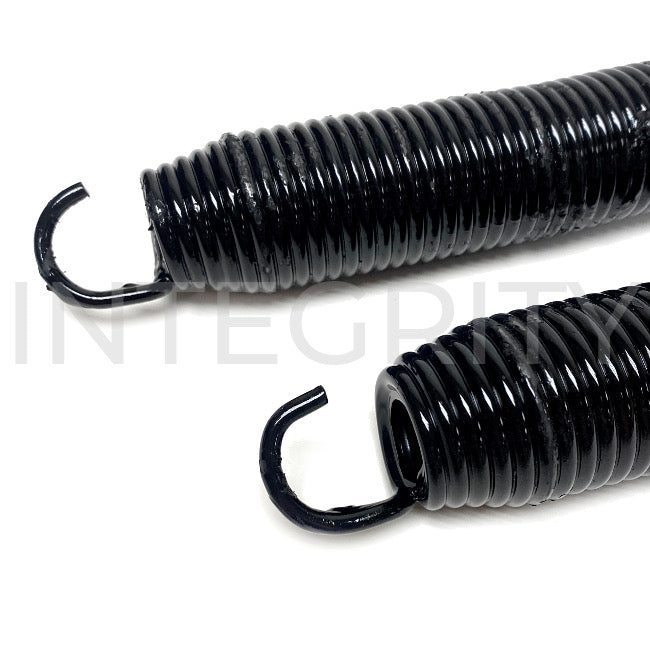

Replacement Spring Kit for Hydraulic Leveling Jacks R3847 (pair). This spring has 63 coils. Hardware not included.

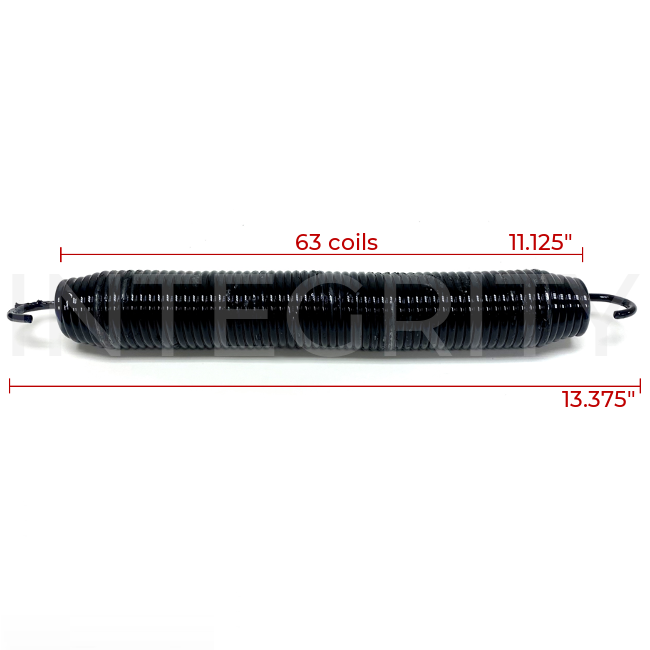

Dimensions: Coil is 11 1/8 inches (11.125"). The length from end of hook to end of hook is 13 3/8 inches (13.375"). 1 5/8 inches (1.625") diameter.

**Please note that your used spring's length may be slightly longer than the new spring. If you are uncertain about the kit you need, please feel free to contact us for help.**

Click here for the HWH spring removal tool kit, # TS63136.

---

The easiest and most reliable way to determine which spring kit you need is to find the AP part number on the tag of the jack cylinder. That AP number will cross to the exact spring kit number. This HWH spring kit was/is used in the following assemblies:

HWH Hydraulic Jack Cylinder Assemblies Using Newmar Part Number 04146

Technical Documents

+

The easiest and most reliable way to determine which spring kit you need is to find the AP part number on the tag of the jack cylinder. That AP number will cross to the exact spring kit number. This HWH spring kit was/is used in the following assemblies:

HWH Hydraulic Jack Cylinder Assemblies Using Newmar Part Number 04146

AP0468, AP0498, AP0585, AP0947, AP1042 , AP1165, AP1168, AP1197, AP1198, AP1204, AP1613 , AP1615 , AP1901, AP1927, AP1930, AP1954, AP1955, AP2023, AP2024, AP2025, AP2026, AP2416, AP3898, AP8082, AP8112 , AP8164, AP8443 , AP8579 , AP8587, AP9098, AP9099, AP9306, AP9551, AP9567, AP9867, AP10107, AP10466, AP10717, AP10793, AP10882, AP10908, AP11147, AP11311, AP11312, AP11517, AP1152, AP11546, AP11703, AP11712, AP12076 , AP12503, AP12504 , AP13154 , AP14695, AP14696, AP14797, AP14916, AP14917, AP15196, AP15291 , AP15292 , AP15561 , AP15891, AP15892 , AP15900 , AP16076, AP16077, AP16100, AP16105 , AP16106 , AP16108, AP16109, AP16112, AP16113, AP16900, AP16901, AP17919, AP17920, AP17942, AP17943, AP18307 , AP18308 , AP18376 , AP18377 , AP18812 , AP18813, AP18815, AP18816, AP18817, AP19035, AP19036, AP19037, AP19038, AP20239, AP20313 , AP20316 , AP20770 , AP20771 , AP20955, AP21091, AP21092, AP21986, AP22419 , AP22420, AP22657 , AP22658, AP22808, AP22809, AP25180 , AP26327 , AP26328 , AP26651, AP26652, AP26658, AP26659 , AP27117, AP27118, AP27351, AP27352, AP28806, AP28808, AP28810, AP28812, AP28814, AP29355, AP29368, AP29382, AP29384, AP29386, AP29388 , AP29390, AP29392, AP29460, AP29468, AP29547, AP29620, AP29621, AP29622, AP29623, AP29971, AP29972, AP29973, AP29974, AP29975, AP29976, AP29977 , AP29978, AP29979, AP30386, AP30414, AP30717, AP30718, AP31012, AP31600, AP31606, AP31653, AP31656, AP31700, AP31701 , AP31940, AP31941, AP31982 , AP31983 , AP32034, AP32035, AP32094, AP32095 , AP32240, AP32241 , AP32536, AP32959, AP32960 , AP32961, AP32962 , AP32964, AP32965, AP33043, AP33118 , AP33119 , AP33120 , AP33288, AP33289, AP33954, AP34331, AP34474, AP34488, AP34489, AP34490, AP34583, AP34584, AP34592, AP34593, AP34595, AP34596, AP34641, AP35121, AP35122, AP35123, AP35124, AP35344, AP35345, AP35346, AP35347, AP35510, AP35511, AP35957, AP36172, AP36185, AP36952, AP37056, AP37057, AP37065, AP37066, AP37148, AP37149, AP37472, AP37609, AP39897, AP39927, AP39928, AP40858, AP41323, AP41689, AP41690, AP41998, AP41999, AP42908, AP42917, AP42918, AP42984, AP43007, AP43097, AP43099, AP43163, AP43164, AP43165, AP43180, AP43438, AP43453, AP43454, AP43770, AP43911, AP44097, AP44101, AP44102, AP44179, AP44180, AP44181, AP44256, AP44257, AP44287, AP44429, AP44432, AP44445, AP44447, AP44594, AP44595, AP44659, AP44661, AP44989, AP45002, AP45021, AP45075, AP45076, AP45077, AP45078, AP45081, AP45082, AP45083, AP45084, AP45179, AP45180, AP45426, AP45588, AP45656, AP45657, AP46303, AP46304, AP46747, AP46761, AP46762, AP46763, AP46799, AP47071, AP48086, AP48088, AP48138, AP48140, AP49586, AP50022, AP50023, AP50453, AP50454, AP50846, AP51266, AP51524, AP51592, AP51756, AP51775, AP51777, AP51844, AP51845, AP51847, AP51884, AP51886, AP51887, AP51890, AP51891, AP52063, AP52238, AP52239, AP52521, AP52522, AP52644, AP52645, AP52680, AP39898, AP39914, AP40503, AP40506, AP40509, AP40511, AP41844, AP41888

RAP9551, RAP92444, RAP92443, RAP9099, RAP8082, RAP3898, RAP1901, RAP1204
