Auto Motion RV Remote Control Shade Motor EL-4285P-1230 Newmar 026611

$218.99 $254.22

SKU: 08548788 Newmar

39 in Stock, Ready to Ship.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

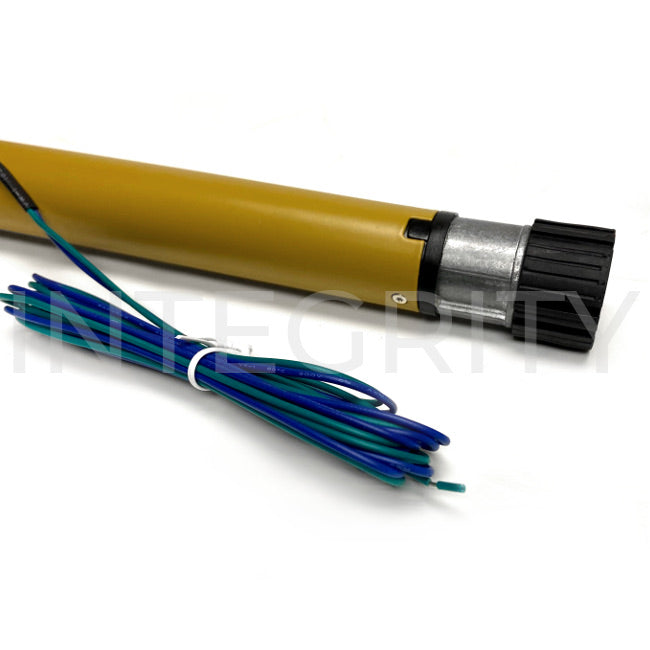

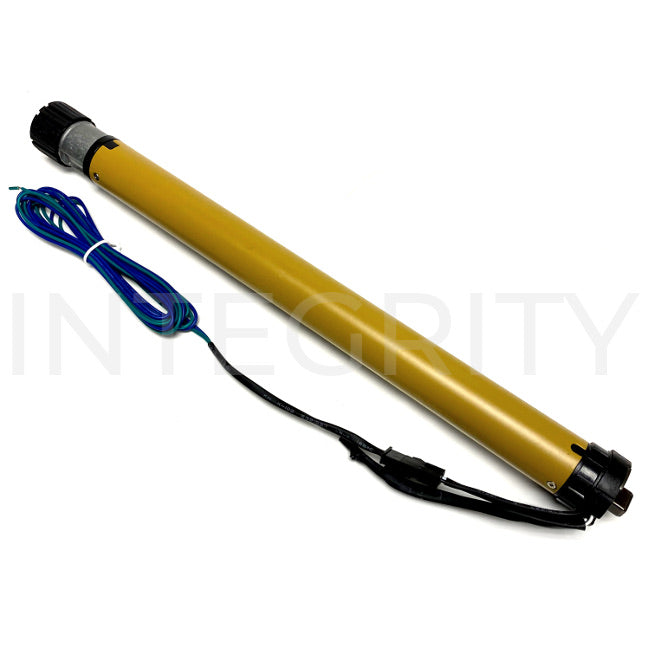

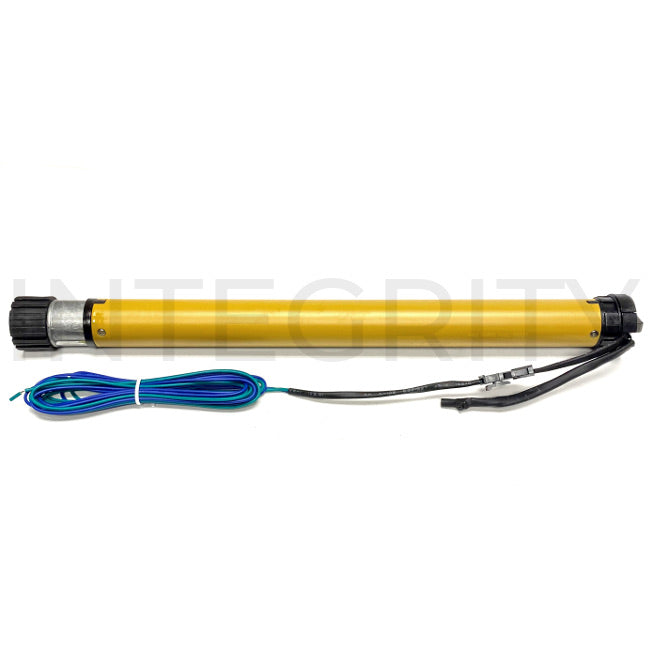

Auto Motion Shade 12-volt power roller for AMS dual and single roller shades. Limits are adjusted manually by screws. Measures 12 1/4” long. The new / current motor is part number Auto Motion EL-4285P-1230. This power shade motor is used in class A motorhomes / RVs. Newmar part number 026611.

Motor Model 4285P-1230 Standard Mechanical Limit Motor, Remote Control – 12VDC
Voltage: 12VDC
Speed: 30 RPM
Diameter: 1” (25mm)
Length: 12 1/4” (311mm)
Torque: 1 N.m.
Watt: 10W
Amps: 0.9
Wire gauge: AWG 22
Connector: Molex

 Click here for Automotion Shade Motors (AMS) obsolete / replacement cross information.
