Wiper Tech ZD-2732-12V Diesel Equip RV Wiper Motor 85NM

$245.99

SKU: 08479549 Wiper Technologies

12 in Stock, Ready to Ship.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

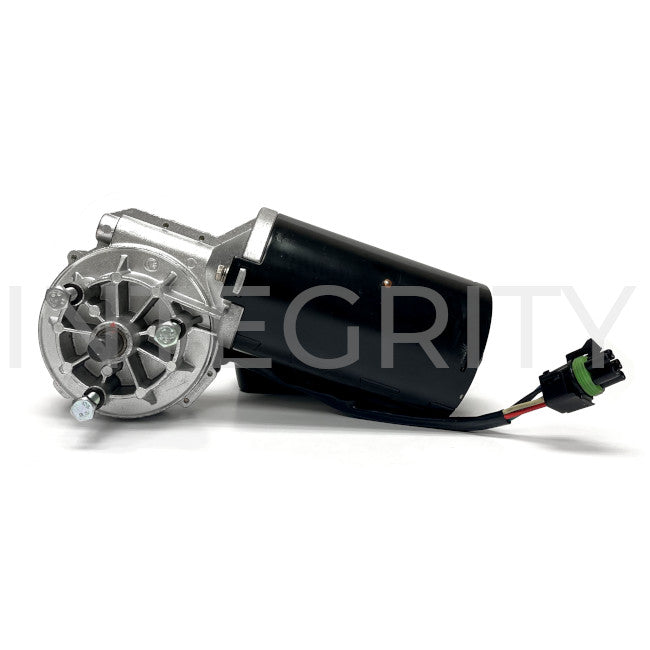

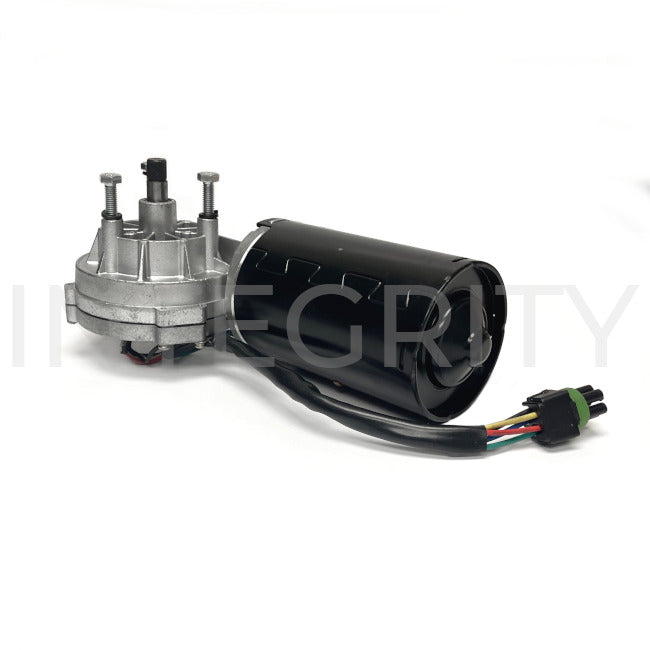

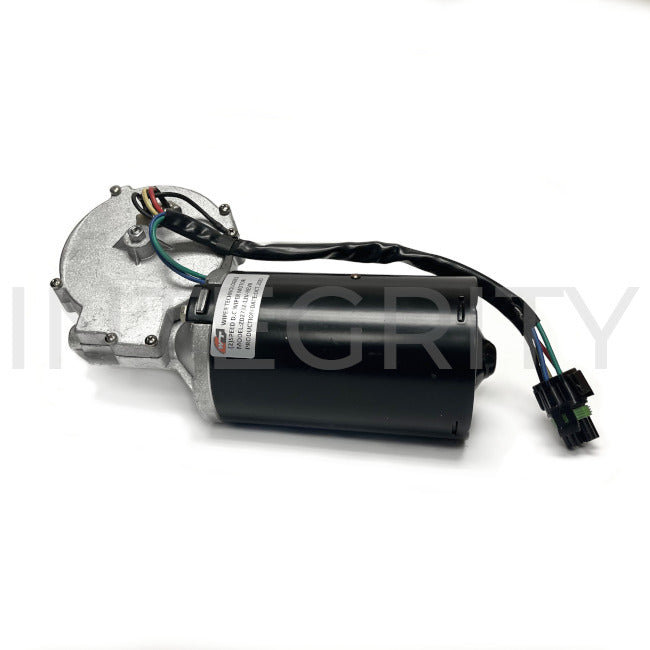

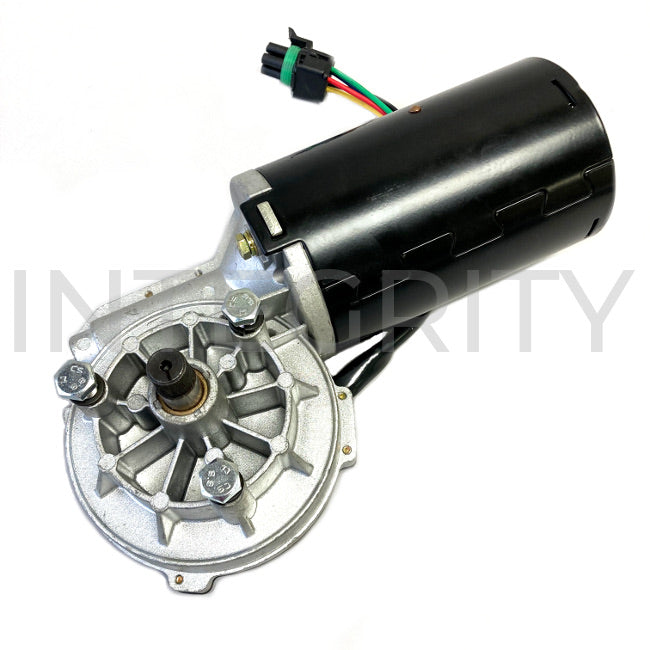

Wiper Technologies RV motorhome wiper motor 12V 85NM. The harness is a 5-pin round style. 150 watt motor. Used in many makes and models of motorhomes / Recreational Vehicles / RVs. Wiper Tech OEM # ZD-2732-12V / ZD2732 / WT-ZD2732-12V. Newmar part number 024922.

Bolt Distance (Center to Center) – 2 7/16 inch
Shaft Diameter – 7/16 inch
Length of Motor – 11 inch
Diameter of Motor – 3 ¾ inch



This motor is used in several different wiper systems in many different makes and models of motorhomes. It is commonly used in Wiper Tech system 85596 with the following parts:

Newmar RV Bolt-On Saddle Mount Wiper Arm 010492

Newmar RV Wiper Blade Straight Bolt On Saddle Mount 39" 011054A

Newmar RV Wiper Pivot Shaft LH 011219

Newmar RV Wiper Pivot Shaft RH 011218

Newmar RV Reservoir Tank 12 Hole 011740
