Newmar RV Gearbox Linkage "A" with High Torque Step Motor 022622


SKU: 08571512 Newmar

1 in Stock, Ready to Ship.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

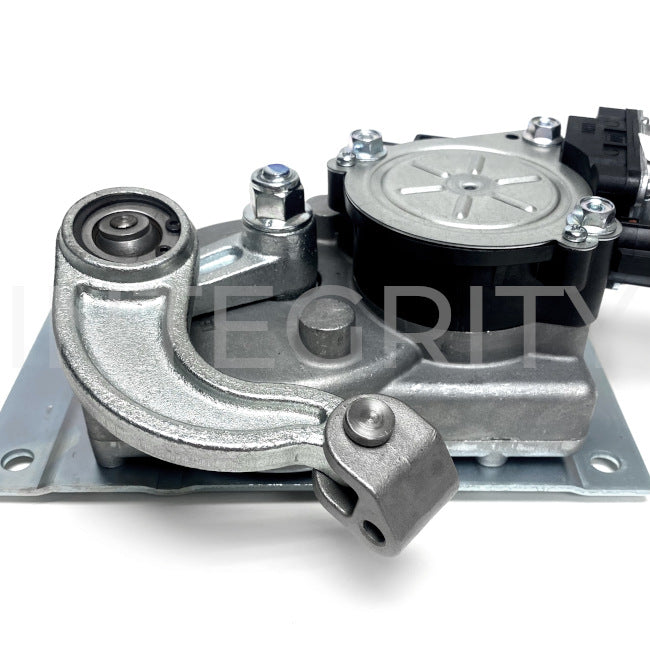

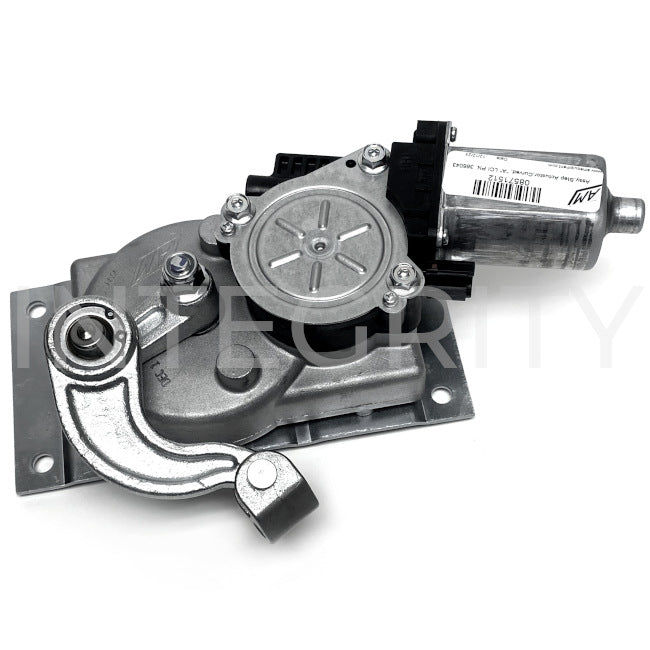

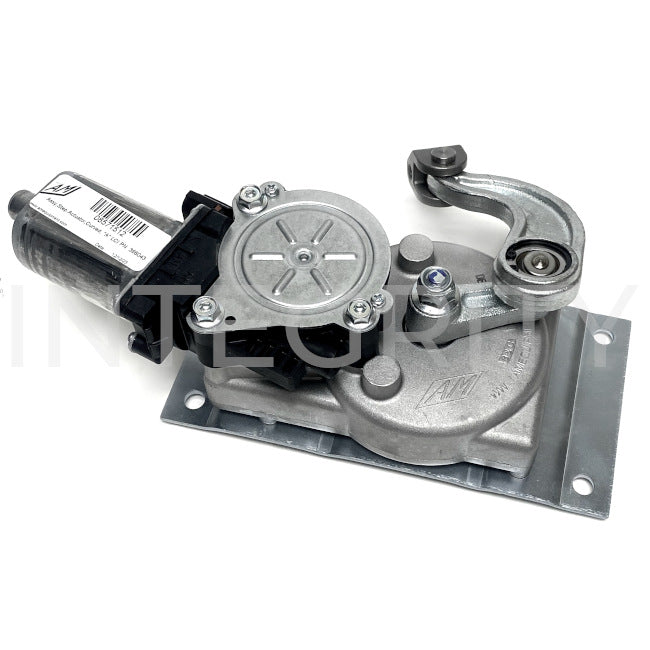

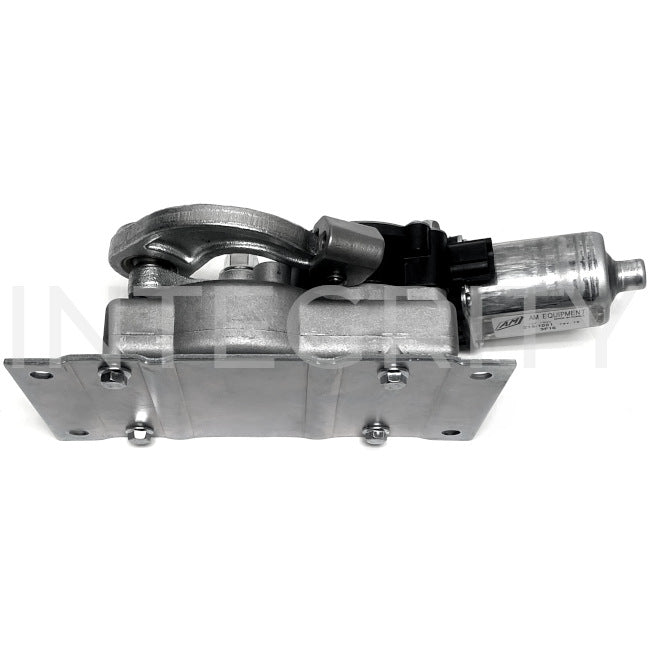

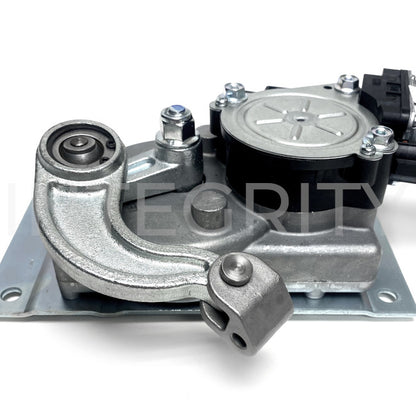

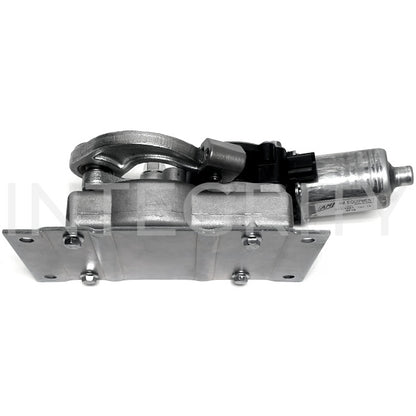

RV replacement step gearbox with curved linkage "A" assembly + 214-1001 high torque motor attached. Typically used for triple and quad step configurations (3-4 steps). 5:1 gear ratio. Original replacement, Lippert part 336043 (replaces Lippert 1101422). Newmar number 022622.

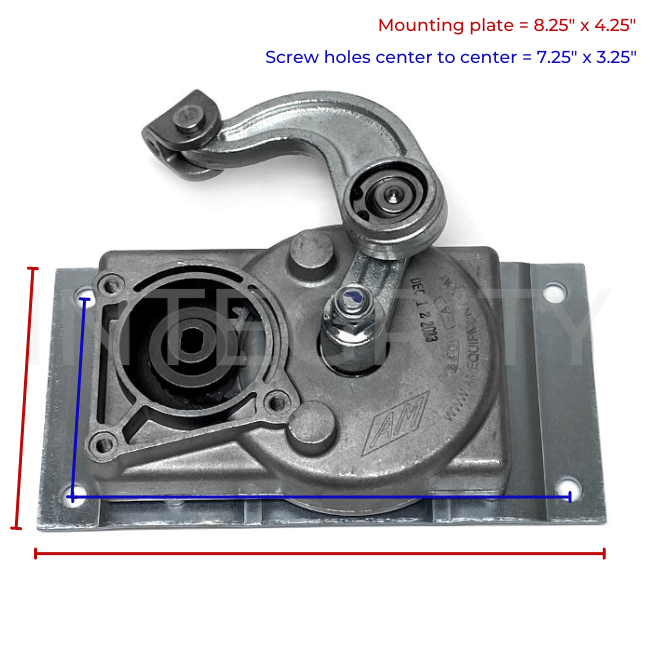

18 NM rating, 12V motor. 110 mm (4.25”) x 210 mm (8.25”) mounting plate. 17 mm diameter double flat power take-off shaft. 13 rpm speed range at gearbox. Durability tested to 50,000+ actuation cycles with linkage.

Gearbox linkage only: Newmar 010949 (click here)
Step motor only: Newmar 030468 (click here)

**If your coach has 1 or 2 steps, please see part 08571509 (click here).
