Newmar RV HWH Spring Kit R6824 021663
Newmar RV HWH Spring Kit R6824 021663
SKU:08489783
15 in Stock, Ready to Ship.
In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.
Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.
Couldn't load pickup availability
Product Description
Product Description

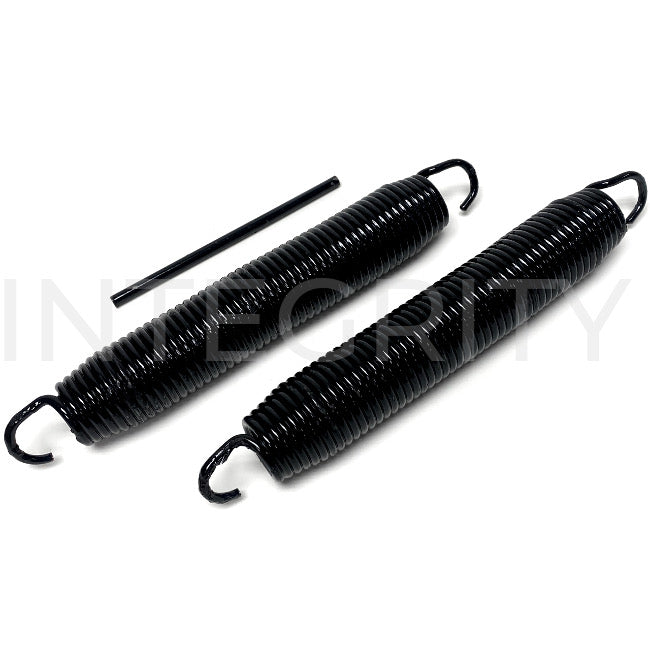

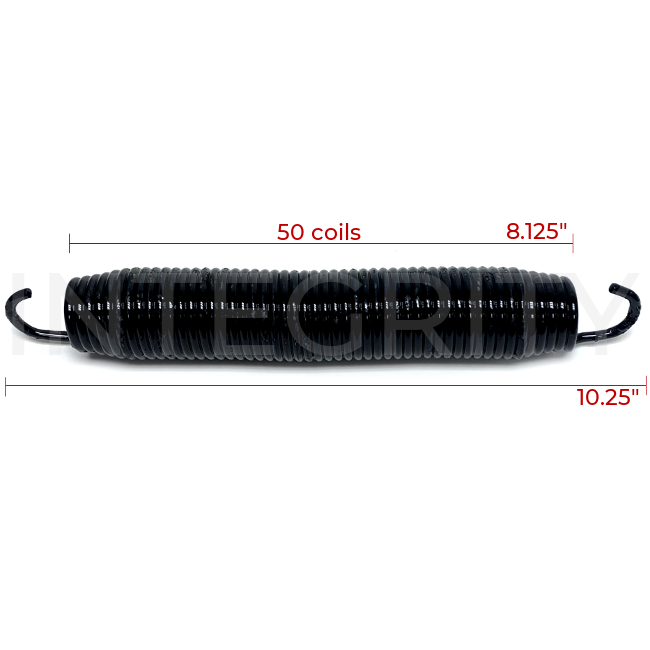

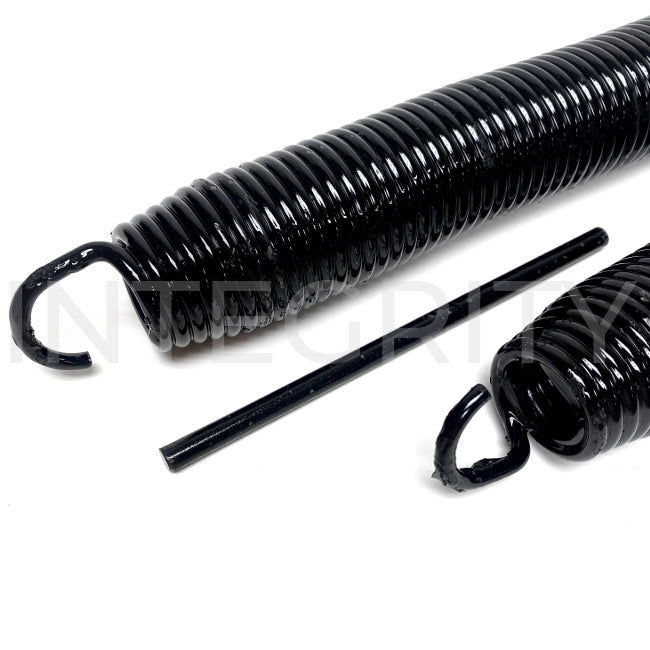

Newmar RV motorhome Class A HWH Spring Kit R6824. The coil length is 8 1/8 “, hook to hook measures 10 ¼”, diameter of the spring is 1.5”. There are 50 coils on the spring.
**Please note that your used spring's length may be slightly longer than the new spring. If you are uncertain about the kit you need, please feel free to contact us for help.**
Click here for the HWH spring removal tool kit, # TS63136.
---
The easiest and most reliable way to determine which spring kit you need is to find the AP part number on the tag of the jack cylinder. That AP number will cross to the exact spring kit number. This HWH spring kit was/is used in the following assemblies:
HWH Hydraulic Jack Cylinder Assemblies Using Newmar Part Number 021663
AP0991, AP0992, AP7129, AP7164, AP7729, AP8130, AP8242, AP12275, AP12276, AP12447, AP13326, AP14070, AP22301, AP22317, AP34503, AP40490
RAP92442, RAP92441, RAP8242, RAP8130, RAP7729, RAP7164, RAP7164, RAP7129, RAP0992, RAP0992, RAP0991
