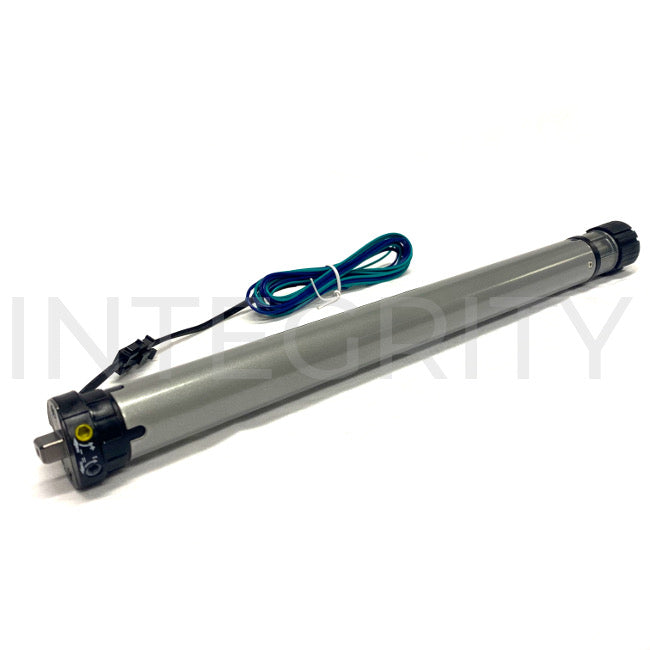

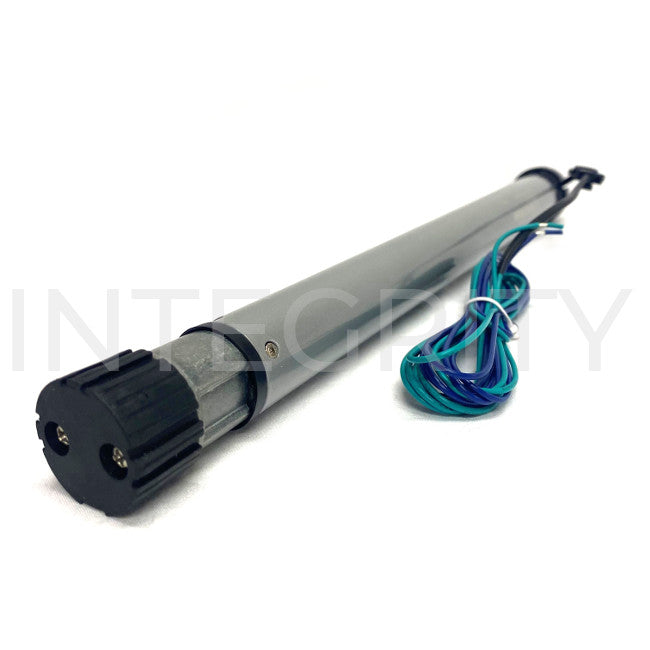

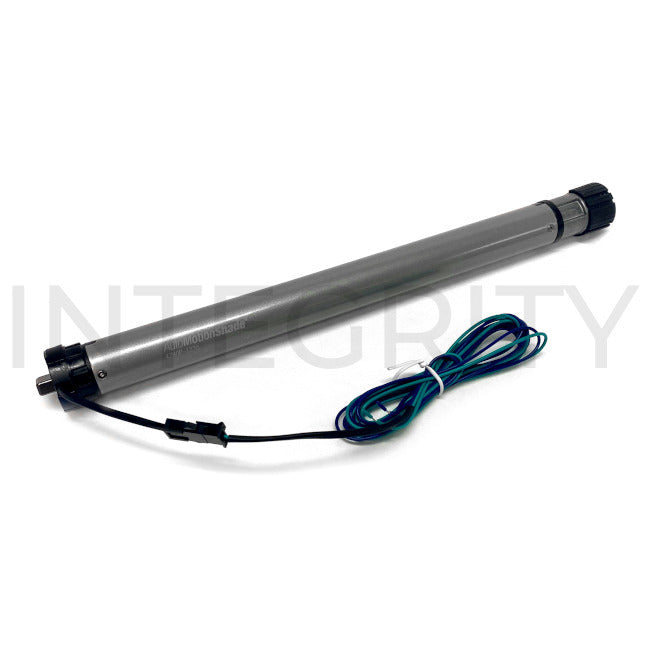

Auto Motion RV Power Shade Motor 12V EL-4280P-1230 Newmar 021172

Auto Motion RV Power Shade Motor 12V EL-4280P-1230 Newmar 021172

SKU: 08420440

Sale Sold out
Regular price $199.10 USD

82 in Stock, Ready to Ship.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

Product Description

+

Auto Motion Shade 12 Volt Power Roller for AMS Dual and Single Roller Shades. Limits are adjusted manually by screws. Measures 12 ¾” long.

The new / current motor is SILVER, part number Auto Motion EL-4280P-1230. This replaces the original BLUE motor, which was Auto Motion EL-4265-1230. This power shade motor is also used for the dash in Tiffin coaches.

You may also need the following parts:

AMS Shade Adapter HA-856, Newmar 021172A (click here)

AMS Program Receiver EL-217P, Newmar 026161 (click here)

Auto Motion 4280P-1230 Power Shade – Newmar 021172
Voltage: 12VDC
Speed: 30 RPM
Diameter: 1” (25mm)
Length: 12 1/4” (311mm)
Torque: 1 N.m.
Watt: 10W
Amps: 0.9
Wire gauge: AWG 22
Connector: Molex

Technical Documents

+

The following pdf will help you determine which accessory items you may need:

Click here for Automotion Shade Motors (AMS) obsolete / replacement cross information.
