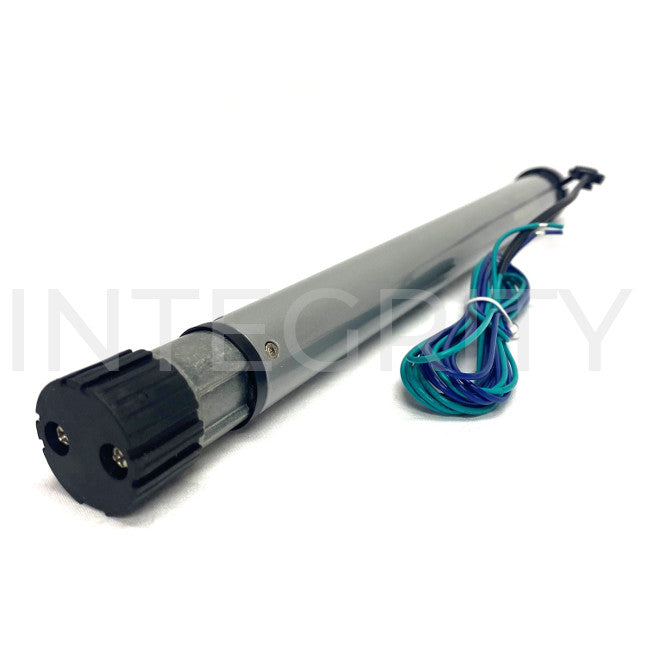

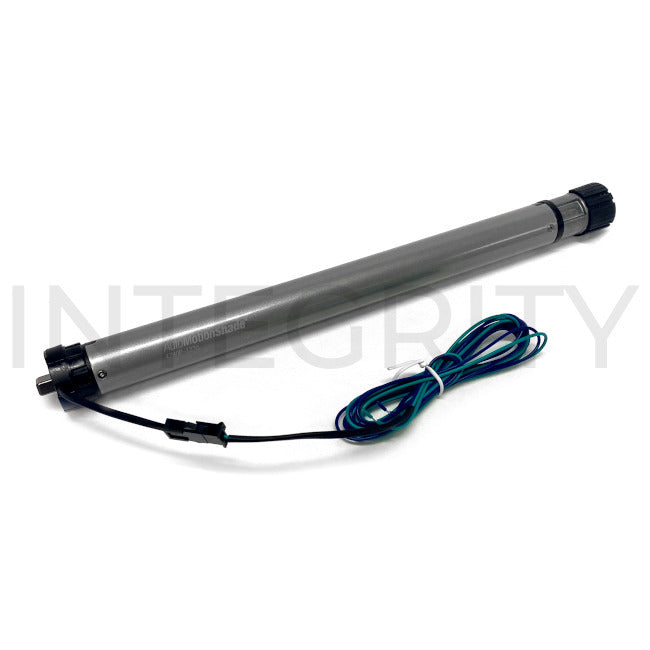

Auto Motion RV Power Shade Motor 12V EL-4280P-1230 Newmar 021172

$222.99

SKU: 08420440 Newmar

Available in approx. 5-7 business days.

In stock items ship same day, 4:30 pm EST cut-off time. Next day delivery is available for domestic orders.

Out of stock items typically ship within 5-7 business days, but please contact us for precise lead times.

Auto Motion Shade 12 Volt Power Roller for AMS Dual and Single Roller Shades. Limits are adjusted manually by screws. Measures 12 ¾” long.

The new / current motor is SILVER, part number Auto Motion EL-4280P-1230. This replaces the original BLUE motor, which was Auto Motion EL-4265-1230. This power shade motor is also used for the dash in Tiffin coaches.

HA-856 adapter commonly used with Shade Motor - Newmar RV Motorhome Class A adapter F/EL-4280P-1230 Motor 021172A (Click Here).

Auto Motion 4280P-1230 Power Shade – Newmar 021172
Voltage: 12VDC
Speed: 30 RPM
Diameter: 1” (25mm)
Length: 12 1/4” (311mm)
Torque: 1 N.m.
Watt: 10W
Amps: 0.9
Wire gauge: AWG 22
Connector: Molex

 Click here for Automotion Shade Motors (AMS) obsolete / replacement cross information.
